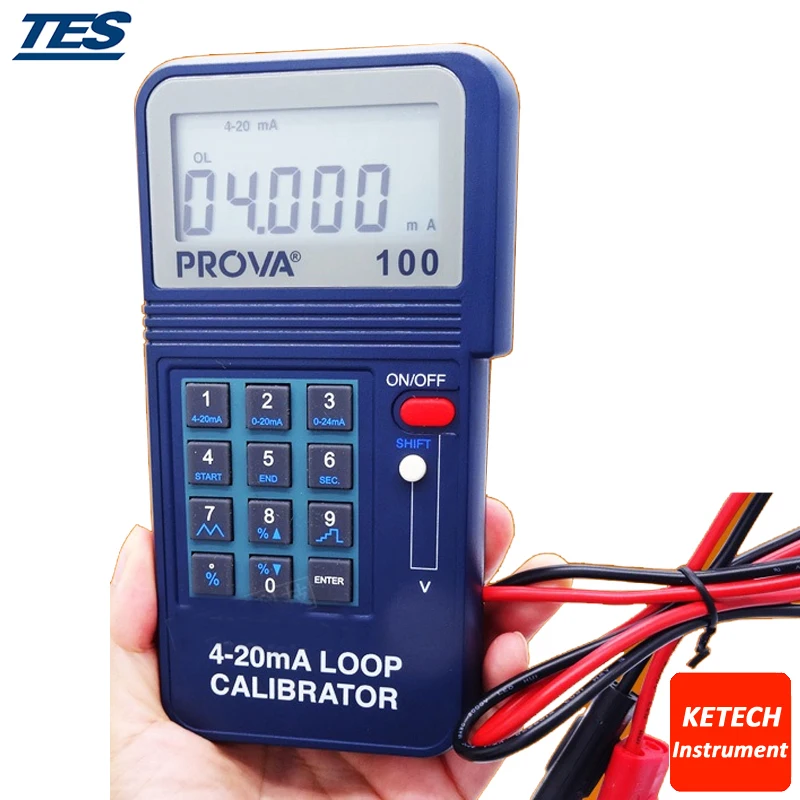

Calibrator Monitor Meter Process Loop Calibrator 4-20ma PROVA100

Electrical Specifications: (23C5C)

mA DC Current: (1K Max. Load, 24V Loop Supply)

Range

Resolution

Accuracy

0 4mA

1A

0.025% 10A

4 20mA

1A

0.025% 5A

20 24mA

1A

0.025% 5A

Beeper warning when output is open and specified output > 1mA

V DC Voltage

Range

Resolution

Accuracy

0 4V

1mV

0.05% 10mV

4 20V

1mV

0.05% 5 mV

20 24V

1mV

0.05% 5 mV

Beeper warning when output is short and specified output > 100mV

General Specifications:

Dimension:

88 x 168 x 26 mm (3.46" x 6.61" x 1.03")

Battery Type:

9V Alkaline Battery

Display:

4+ 5 Digits

Power Consumption:

25 mA at 100 load

Operating Temperature:

0C to 50C (32F to 122F)

Operating Humidity:

less than 85% relative

Storage Temperature:

-20C to 60C (-4F to 140F)

Storage Humidity:

less than 85% relative

Weight:

330g / 11.63 oz

Accessories:

Carrying case x 1; Users Manual x 1;
