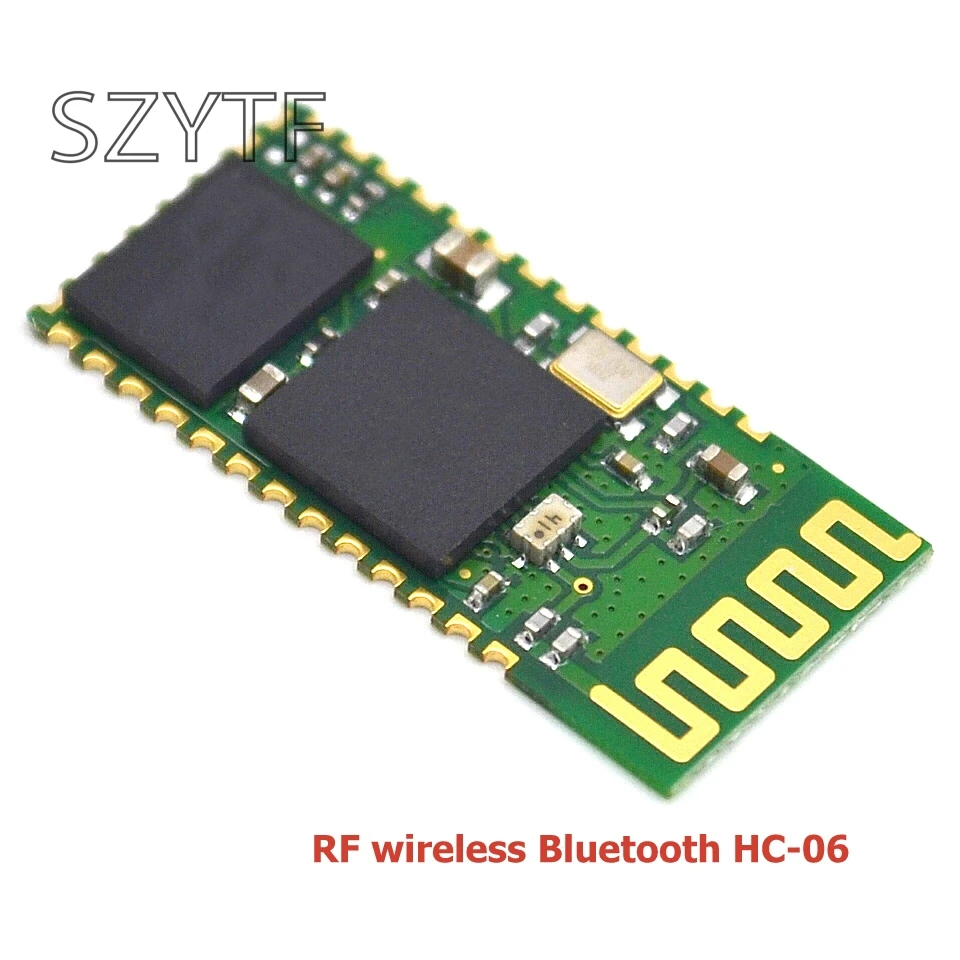

Without floor wireless Bluetooth serial pass-through module HC-06 Slave communication | Электронные компоненты и

Without floor wireless Bluetooth serial pass-through module HC-06 Slave communication | Электронные компоненты и

Third, the product description

1, using CSR mainstream Bluetooth chip , Bluetooth V2.0 protocol standards

2, the serial module operating voltage of 3.3V, 10 meters from the general

3 , factory default 9600 baud rate , the user can set .

4 , working status indicator , connected to the non-connection status signal output, easy MCU status tracking of the modules

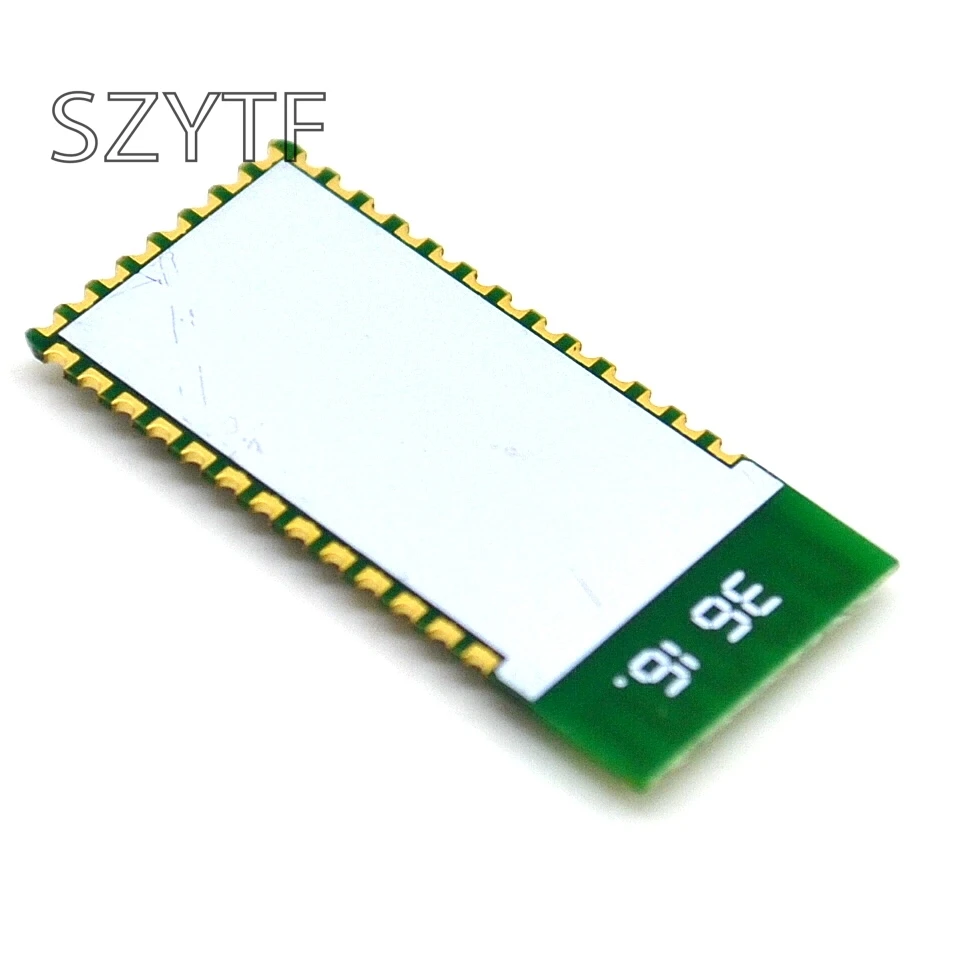

5 , the core module size is : 28mm x 15 mm x 2.35mm

6, the working current: pairing : 30 ~ 40mA pairing has not been completed communication : 2 ~ 8Ma Communication : 8mA

7. Sleep current : no Sleep

8 , for the GPS navigation system , utility meter reading systems, industrial control systems mining site .

9 , with a Bluetooth laptop computer plus a Bluetooth adapter , PDA and other devices seamlessly connect

Fourth, the product application
This module is mainly used for wireless transmission of data in the field a short distance . And PC can be easily connected Bluetooth device , it can also exchange data between the two modules. Avoid cumbersome cable connections , can directly replace the serial cable .


※ ※ Bluetooth printer wireless data acquisition ;

※ ※ Bluetooth remote control toy car testing equipment;

※ Remote control and monitoring ; ※ Bluetooth wireless data transmission ;

※ transportation , underground location, alarm ; ※ POS system, wireless keyboard , mouse ;

※ automated data collection systems ; ※ wireless data transmission ; the banking system ;

Government energy saving lamps equipment ※ ※ interactive television program voting equipment;

※ ※ Bluetooth wireless LED display system joystick, Bluetooth gamepad

※ smart home , industrial control ※ building automation , security , wireless monitoring and control room equipment , access control systems

V. Features

1 , the power supply voltage 3.3V, when unpaired current of about 30mA, paired about 10mA, the absolute prohibition of reverse power !

2, led pin indicates the status of the Bluetooth connection , the output pulse represents no Bluetooth connectivity, high output indicates that Bluetooth is connected and open ports

3 , interface level 3.3V, can be directly connected to various SCM (51, AVR, PIC, ARM, MSP430 , etc. ), 5V microcontroller can also be directly connected , can not pass without MAX232 MAX232!

4 , modules and computer access , followed MAX3232 chip connected to the computer's serial port

5 , open to the effective distance of about 10 meters , but the distance does not make this connection quality assurance

6 , after the pair when full-duplex serial interface , without having to know any Bluetooth protocol , but only supports 8 data bits, 1 stop bit , no parity communication format , which is the most commonly used communication format does not support other formats .

7 , when no Bluetooth connection support setting the baud rate , name , passkey via AT commands , power-down save parameter settings . After Bluetooth connection is automatically switched to transparent mode

8 , small size (2.7cm * 1.3cm), factory chip production to ensure the placement quality .

9 , the link from the machine, computer , Bluetooth with Bluetooth function from the host with a variety of functions , most Bluetooth phones , PDA, PSP and other intelligent terminal pairing , pairing between devices
