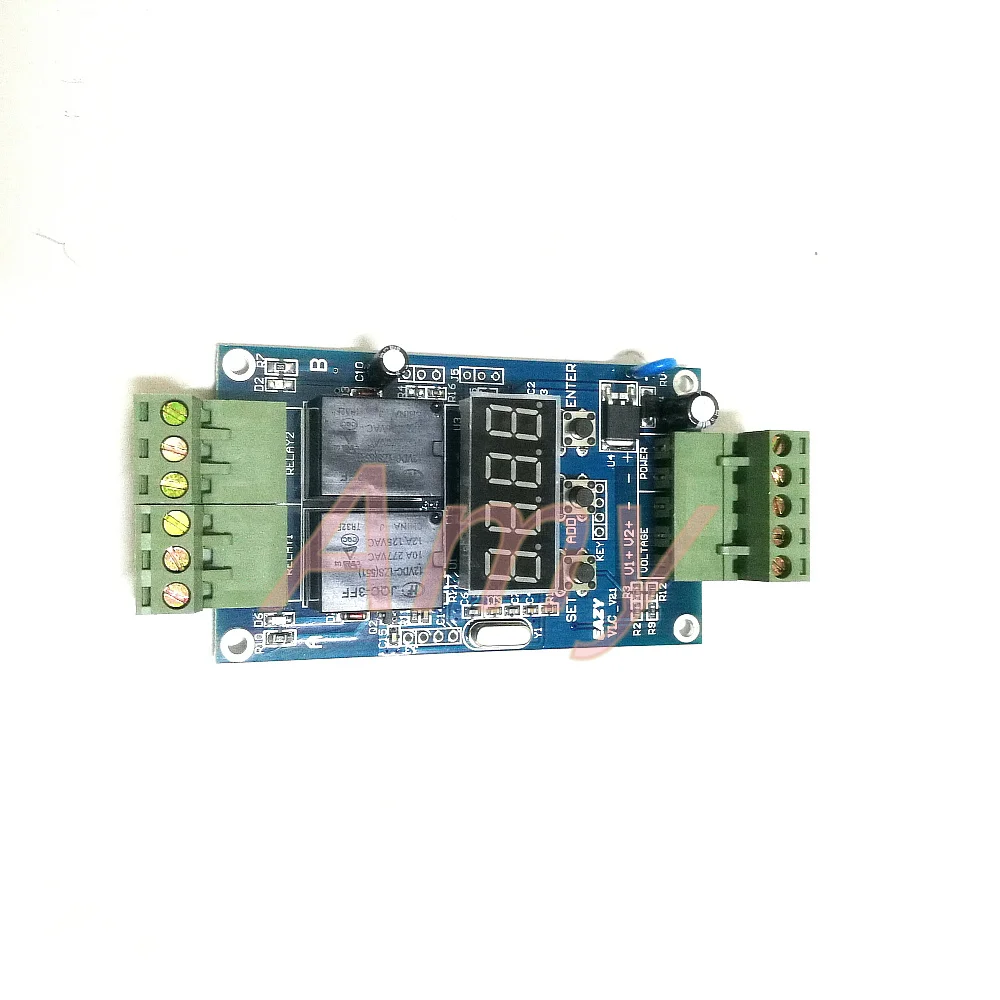

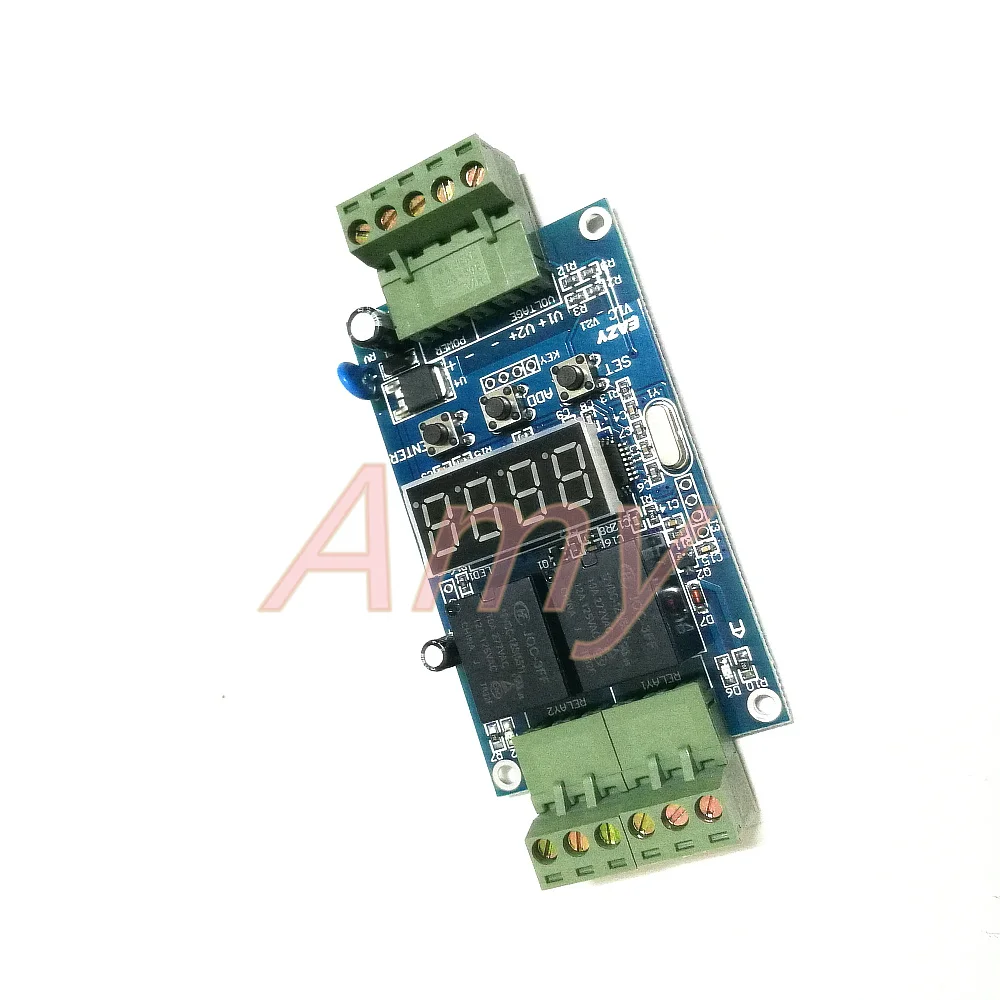

EAZY-VLC2.0The controller can be achieved by adjusting the timing of the methodDual relay joint action, Two time relay can be separately timed pull, but alsoTurn-by-timed pullAnd can control the time relay by detecting dual voltage.

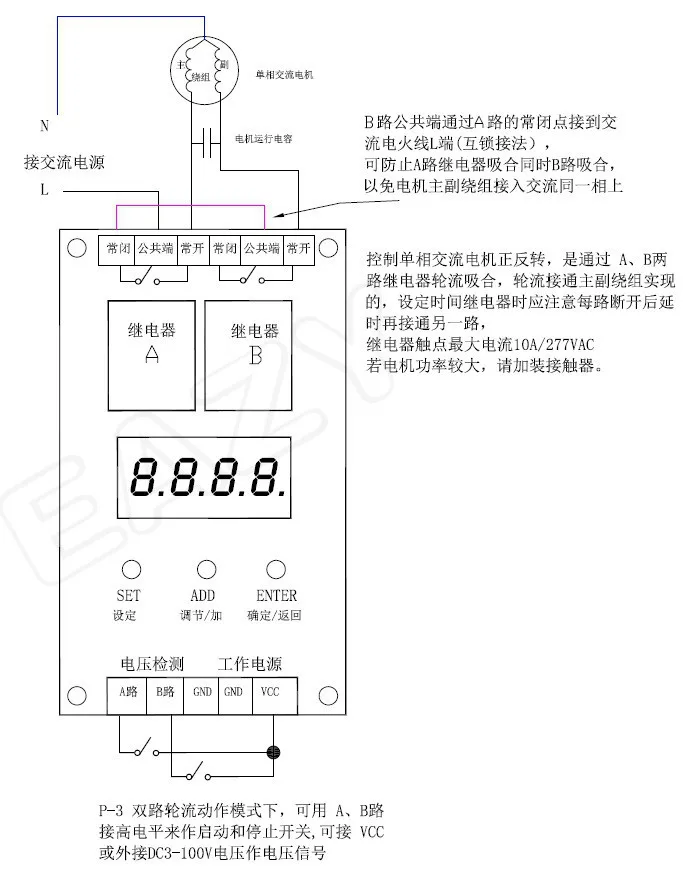

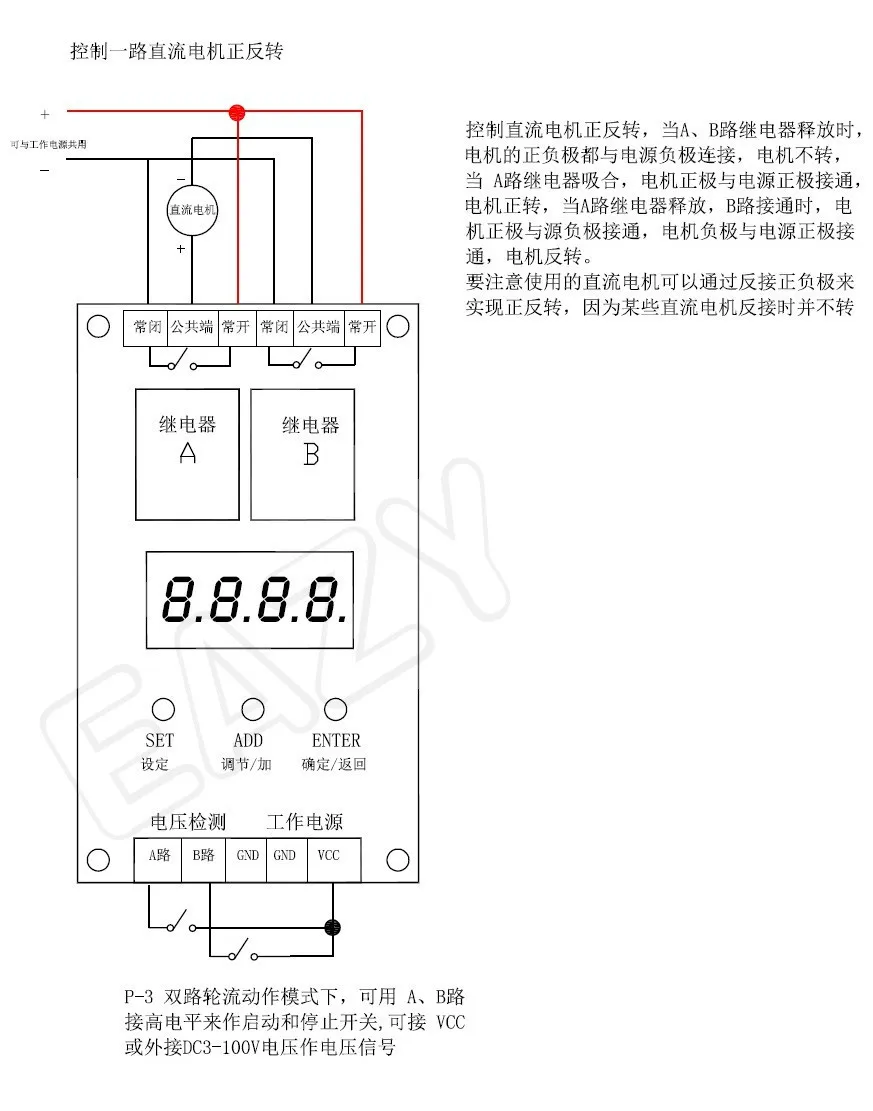

The use of this product, you can control two loads simultaneously or alternately off, such as: single-phase motor control timer reversing all the way, or the way the timing of reversing DC motors, or two-way solenoid valve timing control work in rotation (pneumatic control). or two-way indicator turns off and so on.Multi-plate cascade can achieve multiple turn-off timing of the cycle.

The baby is no hard copy manual, please download the electronic versionBrochures, Download: pan.baidu.com/s/1kTKaOrd(Copied to the browser to open)

Buy Note:

Default shipping version of the power supply is 12V, 24V operating power required, please note,Order no Remarks by 12V shipping.

Please read the product before purchase Features and User's Guide, the use of this relay board to control more complex functions and wiring operation,Need to have some basic electrical and ability who.

Each relay has a set of contacts to switch, when released, normally closed and common point connected to the normally open points and common points off; pulls in, the normally open and common point connected to the normally closed-off point and the common point On.

Electrical box / case please shoot:item.taobao.com/item.htm?spm=0.0.0.0.SZF6mV&id=37154337668

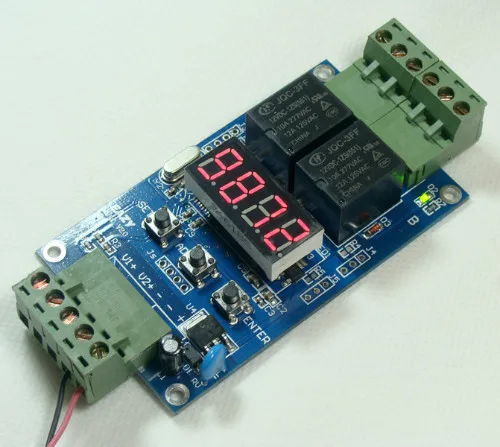

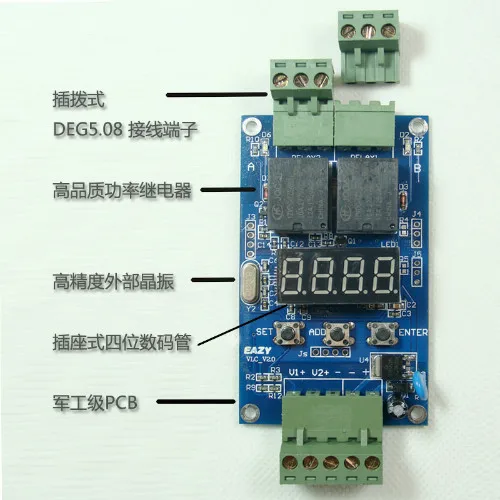

The controller structure diagram:

1.Mode selection menu:

P-1:ARoad Time (timing) Relays

P-2:BRoad Time (timing) Relays

P-3:A BDual joint relay (first A then B Road Road, can be recycled)

P-4:A BDual independent relay (A, B simultaneous independent cycle timing)

P-5:A BDual voltage control relay

P-6: Digital auto-off time and reset

2. Product Features:

3.Performance parameters:

Relay parameters:

4. Mode introduction:

The user through the key settings can be realized as the following functions:

P-1 ARoad Time(Timing)Relay mode

A relay to pull and then release T1 T2, the timing of T1, T2 0.1 seconds to 9999 minutes adjustable from 0 to 999 times adjustable loop or an endless loop, after holding the release timer expires;

May be set are: A relayFirst release and then pull T2 T1, Timed 0.1 seconds to 9999 minutes adjustable, 0 to 999 times adjustable loop or an endless loop, if the loop is set, it has been released after the end of the cycle, if the cycle is not set, then after the end of the timing remains energized.

P-2 BRoad Time(Timing)Relay mode

"P-2" mode and "P-1" mode setting exactly the same, the timing for setting relay B and B road way time relay run separately.B Road T1, T2 time and A Road T1, T2 can be set to two different sets of time can also be set to the same.

When the corresponding channel A, B terminal voltage detector input of 3V ~ 100V high-level signal (rising edge), it can trigger the appropriate time to start the relay.

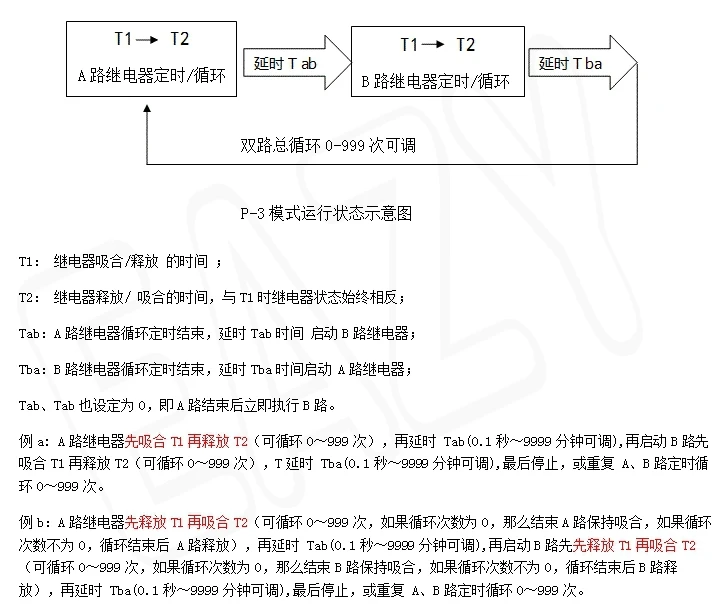

P-3Dual Combined relay

After setting in the P-1, P-2 mode time relay parameters into the P-3 model, the work order is: A way to execute the timing or cycle time relay (0 to 999), then the delay Tab, then execute B road or cycle timed relay (0 to 999), then the delay Tba, stop, or repeat the last action (AB two-way reciprocal rotation frequency of 0 to 999 times or endless loop).

In this mode, you can also use A voltage detector to trigger the start timing of dual rotation, A way of optional trigger high level trigger, to maintain the high level and low level to maintain the way, but only the high voltage detector B level control forced stop and the timer reset.

A, B relay that turns operation cycle demonstration video:tudou.com/programs/view/1Odj7L5_LYI/

Under P-3 mode cascaded multi-channel multi-board turn-off timing of the cycle

2P Dupont line /Cascade linePlease take:item.taobao.com/item.htm?spm=686.1000925.1000774.12.z3YFkO&id=37900758647

P-4 A BDual independent time relay

InP-1,P-2Mode setting goodA,BAfter the road time relay parameters can be enteredP-4Mode, dual time relay run independently, pressENTERButton to start and pause Dual relay run. PressSETKey displaysARoad-timer countdown, pressADDKey displaysBRoad countdown.

When the correspondingARoad,BVoltage-detector input terminal3V~100VThe high level trigger signal, Can trigger the appropriate start-up time of the relay.

P-5 Dual voltage relay

A, B two-way control is run independently of each other,A voltage detector control A relay (or timer) operation, B voltage detector control relay B (or timer) actions. Such as: A road A circuit voltage is higher than the set upper limit, relay A pull, below the lower limit, the relay A release; B B circuit voltage is higher than the limit on the road, the relay B is released, below the lower limit relay B pull. If you set the A in the P-1, P-2 mode, B Road, timing, then at P-5 mode detects the voltage control timer operation, for example, when the voltage reaches the set limit, Start relay five minutes before disconnecting.

A, B two channels can be independently controlled voltage detector A, start the timer over the upper limit voltage relays B or below the lower voltage limit start the timer. Start timer action is based on P-1, P-2 mode setting performed. It can be set to be higher than the upper limit voltage trigger to start the timer.

P-6Mode

For setting the digital automatic turn off time (short press ADD button to adjust 0-9 minutes), press the SET button to restore the factory settings.
