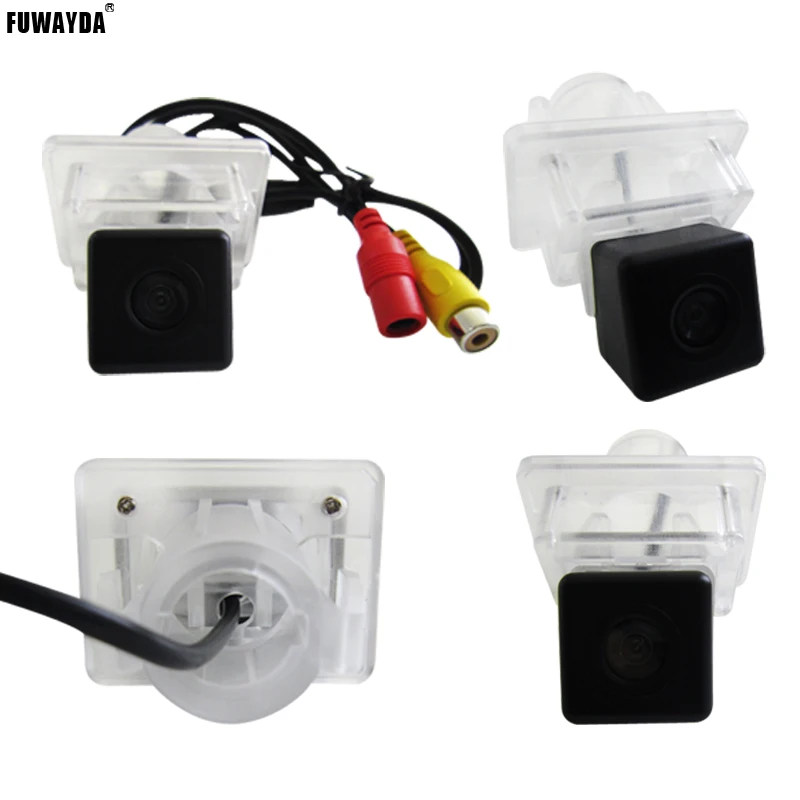

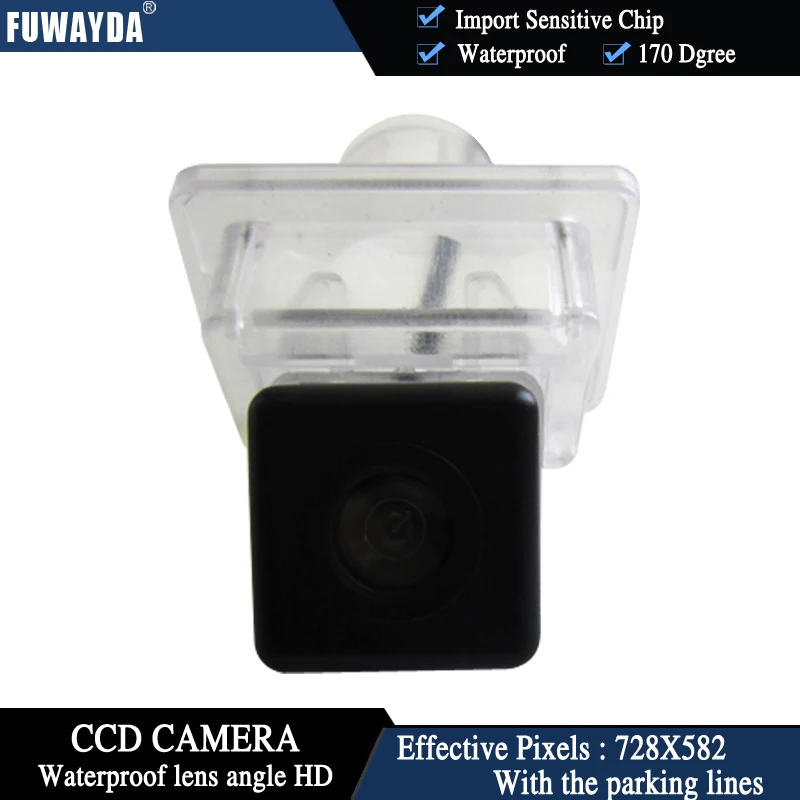

This is our store link: (http:/store/404383)   CCD camera is high clear, better quality than the Colorful CMOS and CMD   CCD Car rear view car camera for:   Mercedes-Benz C-Class: W204 Sedan | Touring (Wagon) 2008~2014   Mercedes-Benz E-Class: W212 2009 ~ 2014   Mercedes-Benz CL-Class: W216 2007 ~ 2014   Mercedes-Benz S-Class: W221 2005 ~ 2014   Mercedes-Benz E-Class Coupe (C207, 2010-2014)   with the 2.4 GHz wireless module, no need to turn the video cable inside the carless labor work, easy install



Main Features   High Clear,Night Vision,Water Proof, Plastic material.170 degree view angle,very small,and easy    for installing.Low illumination and fill light automatic,waterproof.Designed according to the licese    light hole install. All you need is a screen and video input port.



PLS kindly Take Note as below :

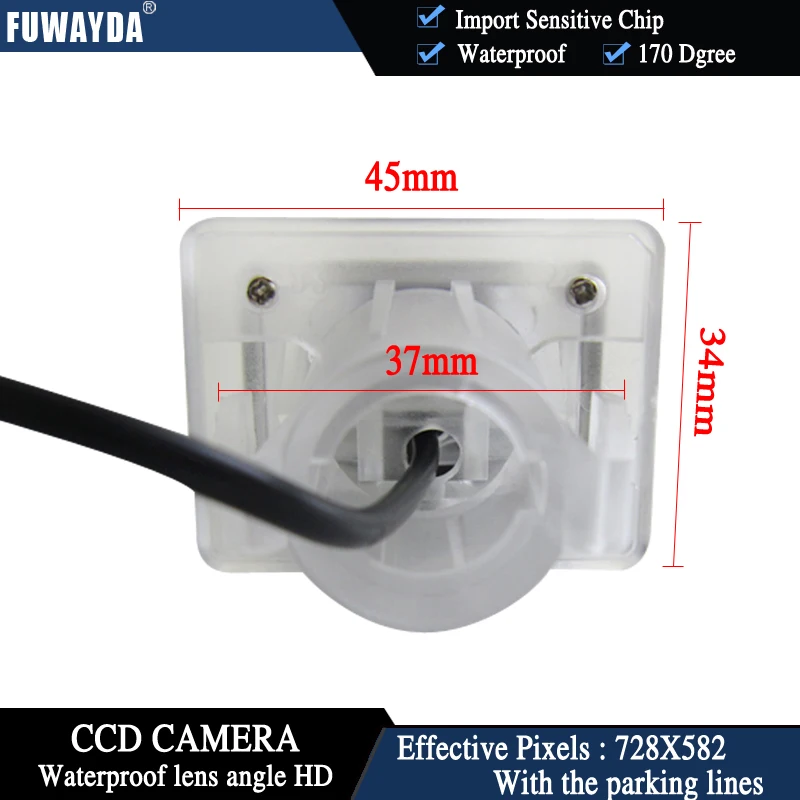

  To be safe, please pay attention to dimension picture before buying. Please contact us if you are not   sure.Please kindly make sure that our product's size is same with your car' s license plate light,   because there may have a little difference even for the same style car but in different country.   This camera will replace one of the license plate lights.                                               Image sensors: 1/4" Color SONY CCD Chip TV System: NTSC (PAL version should be required) Minimum illumination. <0.1 AGC: Auto BLC: Auto White Balance: Auto Video Color: Colorful Effective Pixels : 728x512 Resolution : 520TV lines (Normal CMOS/CCD/CMD camera is 420 TV Lines) Video Output: 1.0Vp-p,75Ω Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S S/N ratio: Better Than 48db Lens Angle: 170 Degree Waterproof Class:Ip 68 Operation Temperature: -20°C+80°C RH95% Storage Temperature: -30°C+80°C Working Power (DCV): 12 V Current consumption: 90mA Max   Video transmitter& receiver 1. 100% brand new, high quality, easy installation 2. Take one minute to get your camera become a wireless camera 3. Wireless 2.4 GHz transmitter/receiver set ( Vehicle voltage12 Volt) 4. Work range: Up to about 50m (hollowness) 5. Connect to rear view camera and front video screen 6. Fit all RCA composite video connections 7. Power: DC 12V 8. Transmitter /receiver cable: 1.5m   Monitor Specification: 1.Screen size: 4.3 inch (diagonal length)  2.Aspect Ratio : 16: 9 image  3.Input:2 ways video inputs  4.System: PAL & NTSC auto-switching  5.Resolution: 420 x R.G.B x 272 dots, high resolution, digital panel  6.Power supply: DC 12 V-24V  7.Compact design  8.Sunshade design around  9.switch function stand  10.Suitable for camera/DVD/VCD player   CCD CAR CAMERA

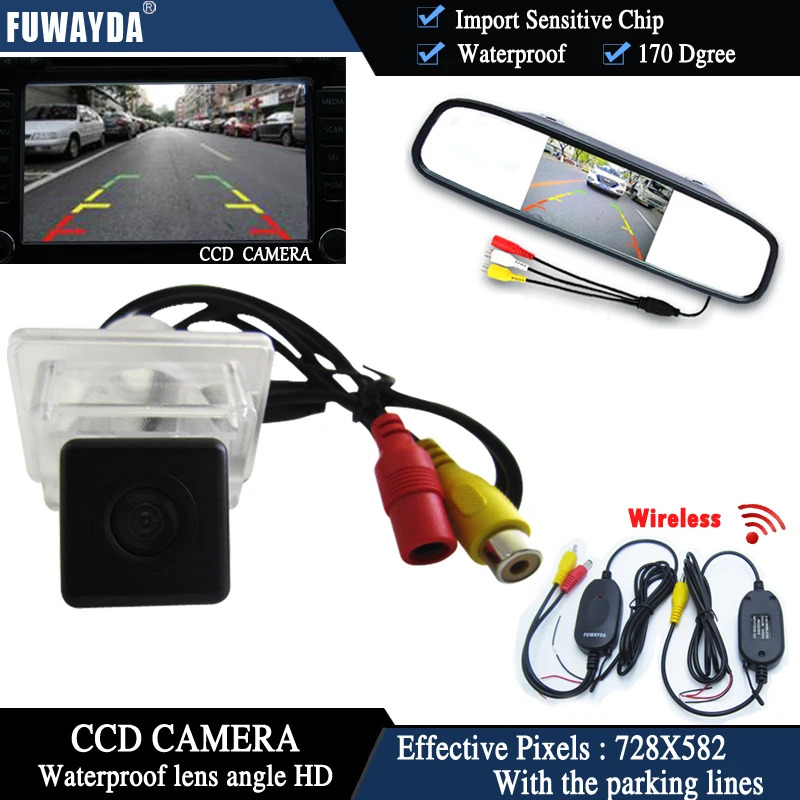

Package:

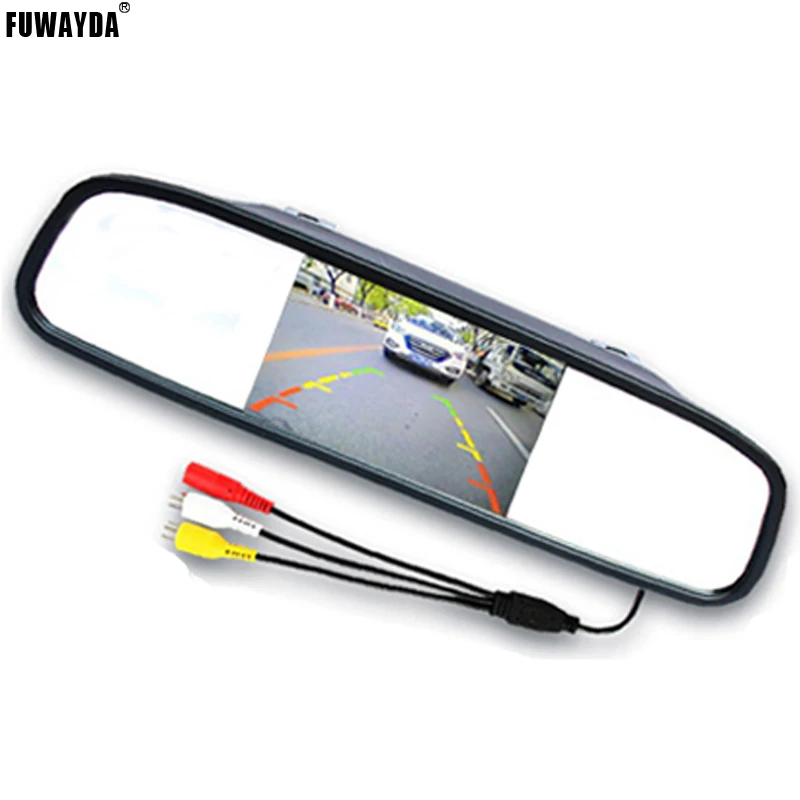

1x4.3" LCD Car Monitor

1xCCD Camera

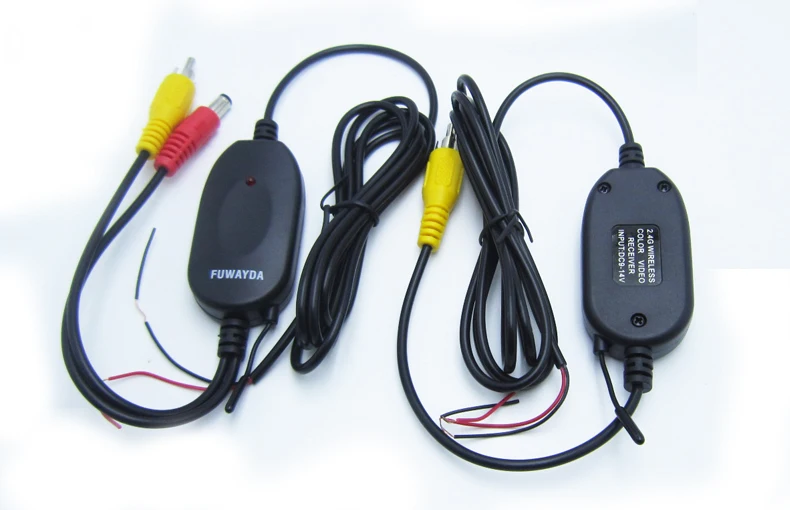

1x2.4 Ghz Transmitter

1x2.4 Ghz Receiver

1xMonitor Power Cable



Installation Method

Take out your stock license plate light at the back of your car. Fix the camera to where the stock license plate light was. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power Connect the power of the camera to your brake lights - red wire to positive and black wire to negative. Connect the video cable of the camera to the extension cord. Connect the extension cord to your car monitor. You will see the images when your car is in reverse shift.
