CSR USB-SPI Debugger BLE Downloader

1. CSR USB-SPI is a special burning/debugger developed for CSR company BlueCore series Bluetooth products. This product can be used for program erasing, burning, downloading, parameter setting, modification and online debugging of Bluetooth target board.

2. CSR USB-SPI is USB interface

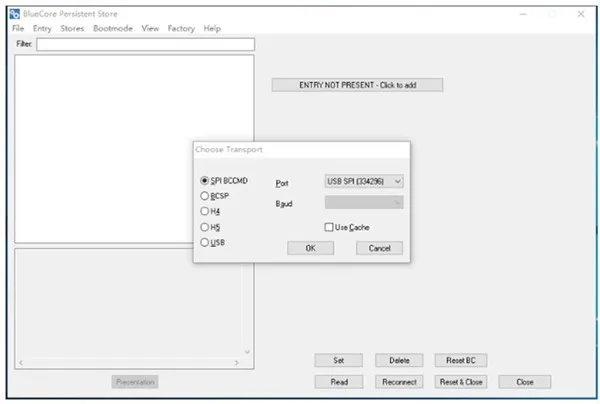

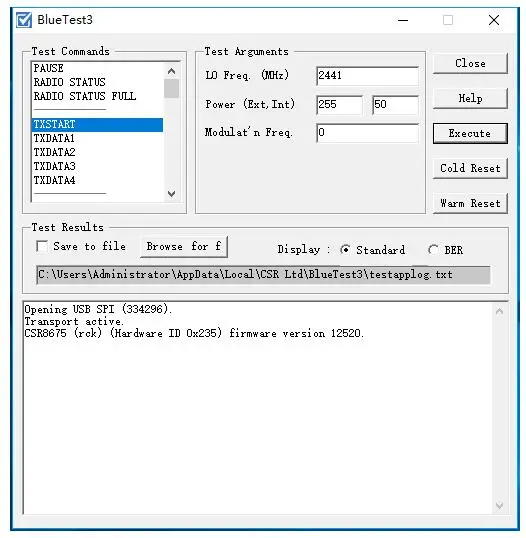

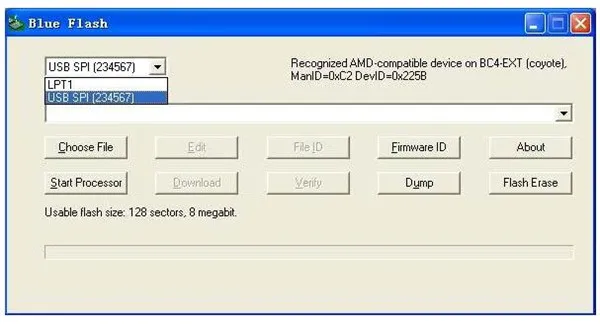

3. CSR USB-SPI Supports CSR Full Series Development Tools, including  BlueFlash，PSTOOL，BlueTest3，BlueLab，StereoHeadset SDK，ADK，ConfigurationTool etc.

4. Support the official CsConfig software, which can be used to configure CSR1000 chips.

5. It can output 3.3V/1.8V voltage externally

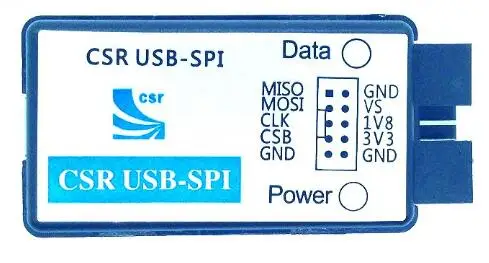

6. Support SPI voltage switching. VS pin is SPI voltage selection port. When VS is floating (with internal pull-up), the SPI voltage is 1.8V, and when VS is grounded, the SPI voltage is 3.3V

Support CSR Full Series Bluetooth Chip

BC2 series (e.g. BC215159A, etc.)

BC3 series (e.g. BC31A223,BC358239A, etc.)

BC4 series (e.g. bc413159a06, bc417143b, bc419143a, etc.)

BC5 series (e.g. BC57F687,BC57E687,BC57H687C, etc.)

BC6 series (e.g. BC 6110, BC 6130, BC 6145, CSR 6030, BC 6888, etc.)

BC7 series (e.g. BC7820,BC7830, etc.)

BC8 series (e.g. CSR 8605, CSR 8610, CSR 8615, CSR 8620, CSR 8630, CSR 8635, CSR 8640, CSR 8645, CSR 8670, CSR 8675, etc.)

CSRA63/CSRA64 Series (e.g. CSRA64110,CSRA64210,CSRA64215, etc.)

CSR10 series (e.g., csr1000, csr1001, csr1010, csr1011, csr1012, csr1013, etc.)

CSRB5 series (e.g. CSRB5341,CSRB5342,CSRB5348, etc.)

QCC3 Series (QCC3001~QCC3008 Series, etc.)

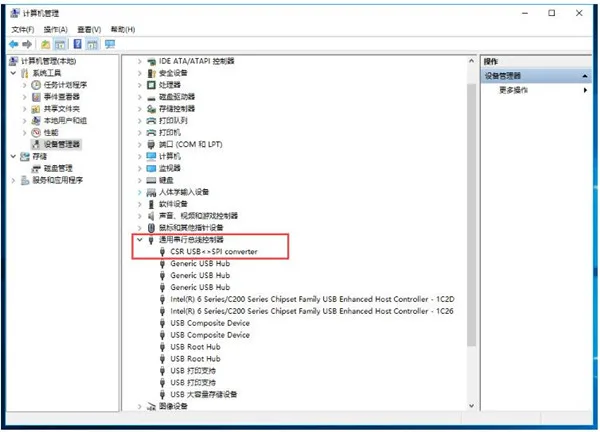

7. Support WINXP/7/10 32&64bit

8. Support one-to-six mass production tools, can use 6 download lines to burn programs at the same time

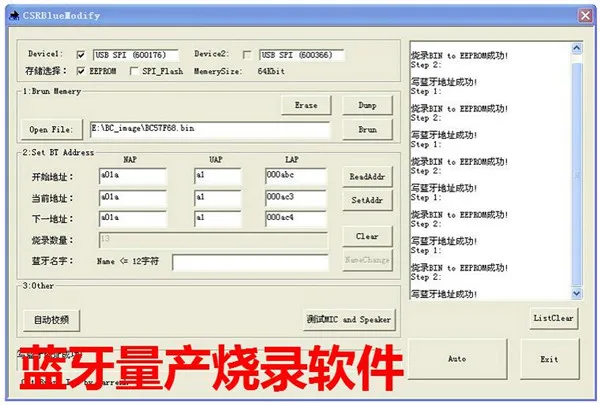

9. Complimentary CSR ROM version of Bluetooth production software, green version, no registration required, supports installation and use of unlimited computers, and is especially suitable for factory production. The software supports EERPOM or FLASH programming, address reading, writing, automatic +1, recording of burning quantity, modification of Bluetooth name, and automatic calibration frequency.
