1. Products brief introduction

DDMDLV1.0 is designed by our Studio, it is a CNC system based mach3.It’s version is 1.0 now. You do not need to add other Hardware, and you can complete the signal conversion from the G-code to the movement of the stepper motor drive control. This card is compatible with most stepper motor with 0.6-4A and 2-phase. And it is perfect weapon to replace mach3 parallel interface stepper driver board.

2. Computer system requirement

Basic Configuration:

1)        CPU: 1GHz;

2)        Memory: 512MB

3)        500MB Available disk space

4)        USB 2.0

Recommended configuration:

1)        CPU: 2GHz Dual Core;

2)        Memory: 2GB;

3)        1G Available disk space

4)        USB 2.0

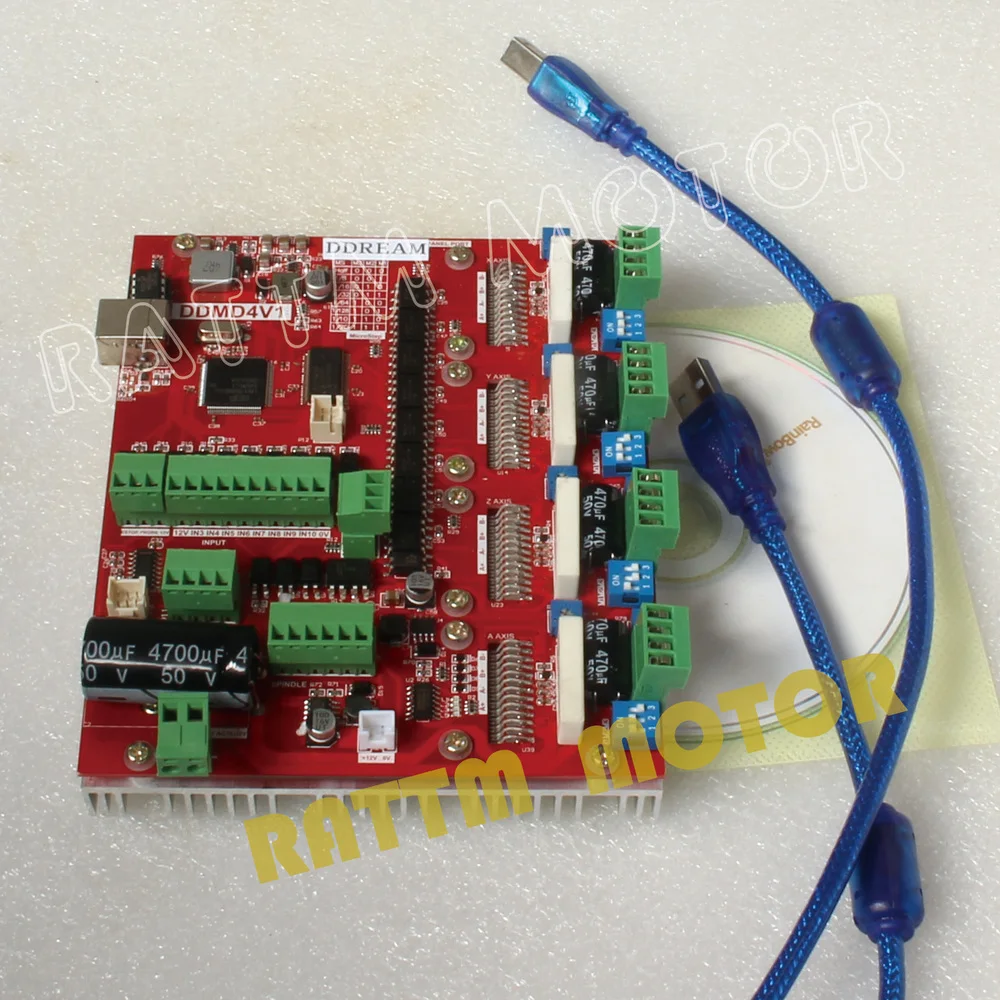

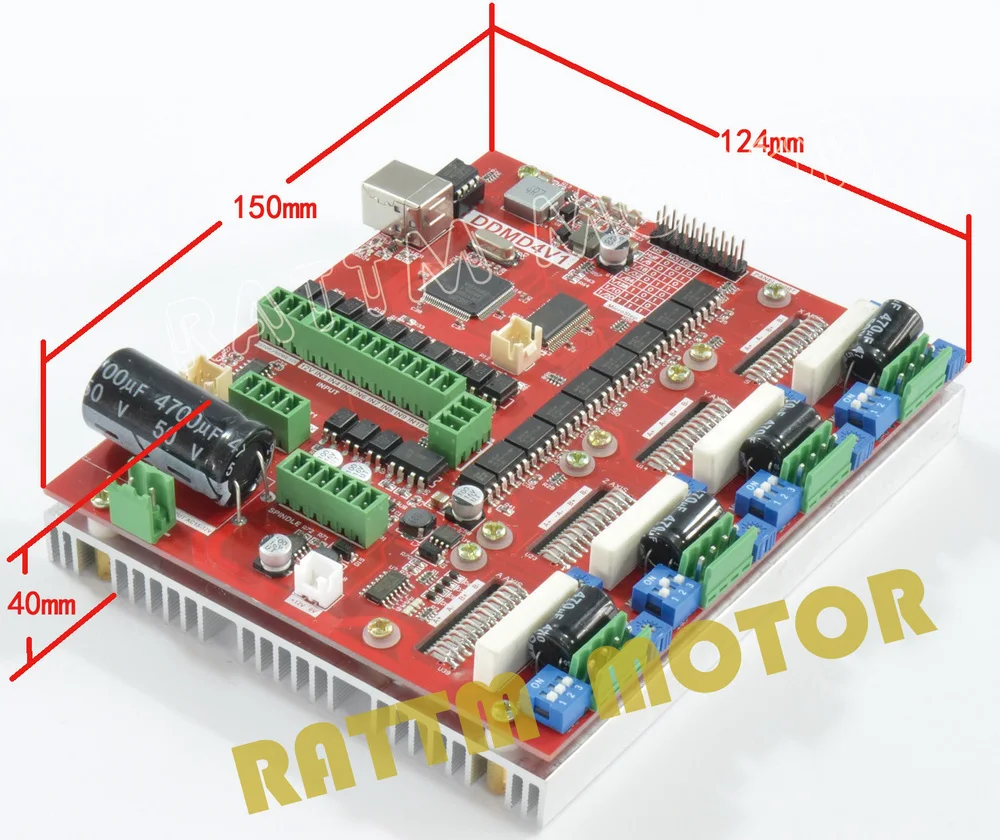

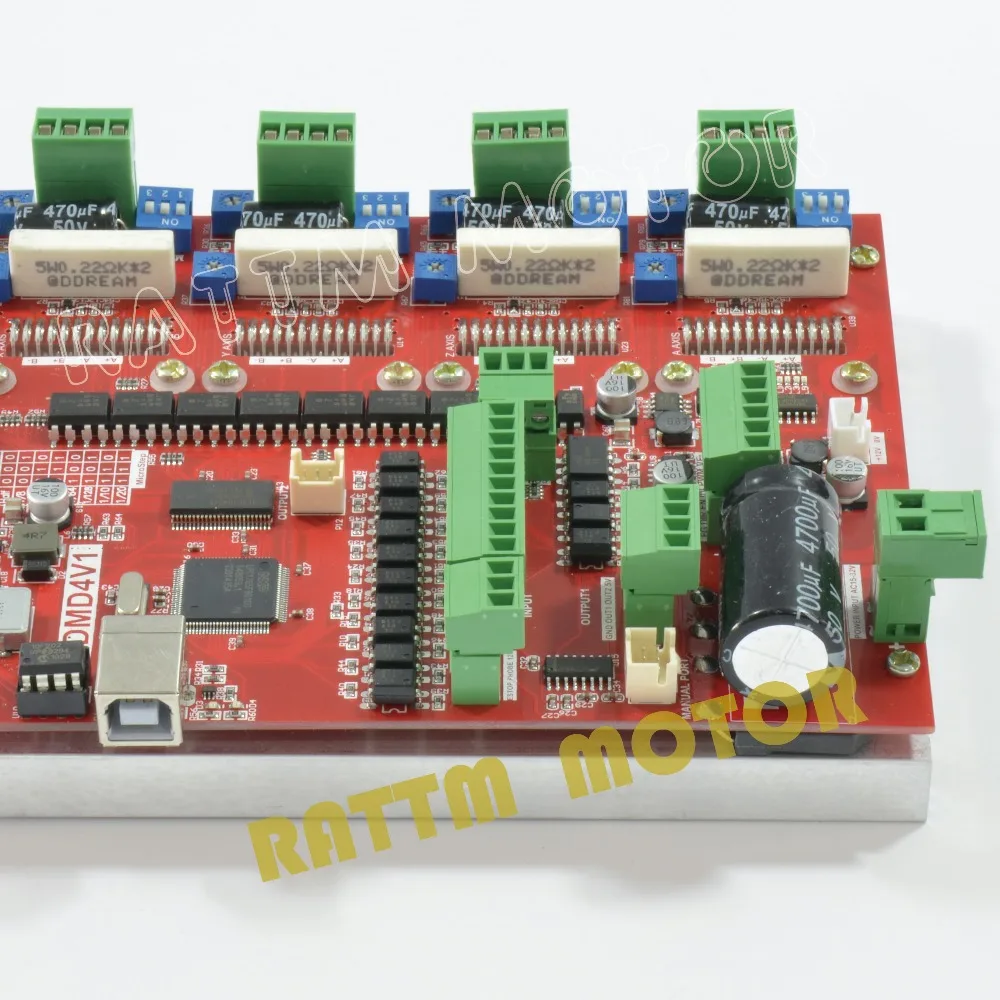

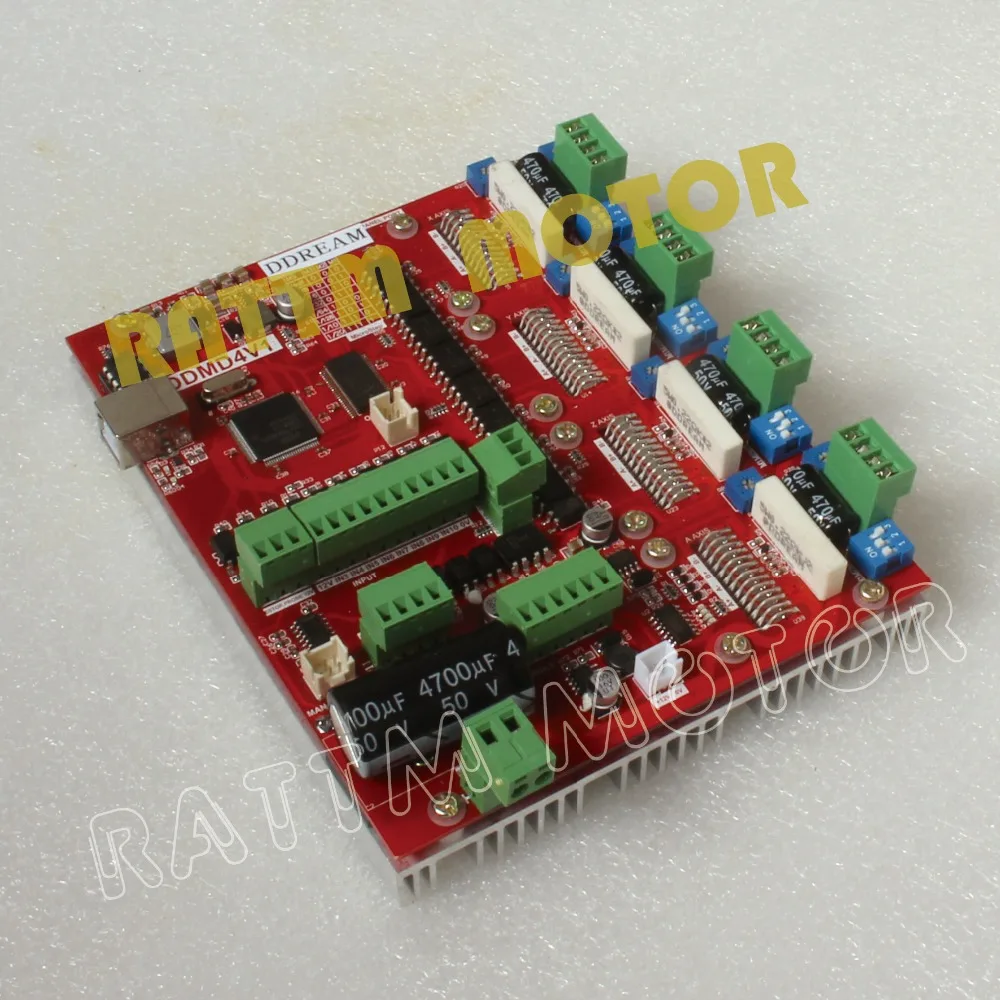

3.Production appearance and size

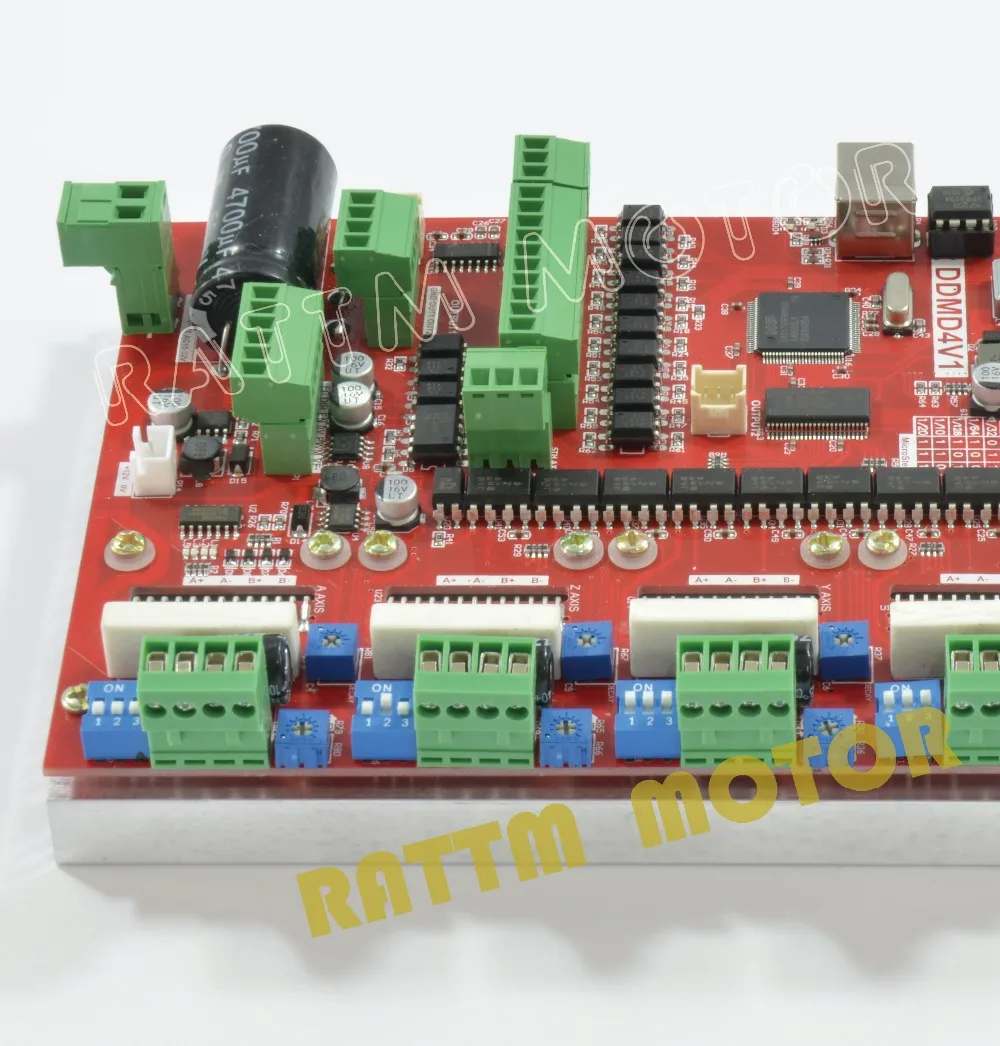

1)        USB communication interface, and power supply for the board;

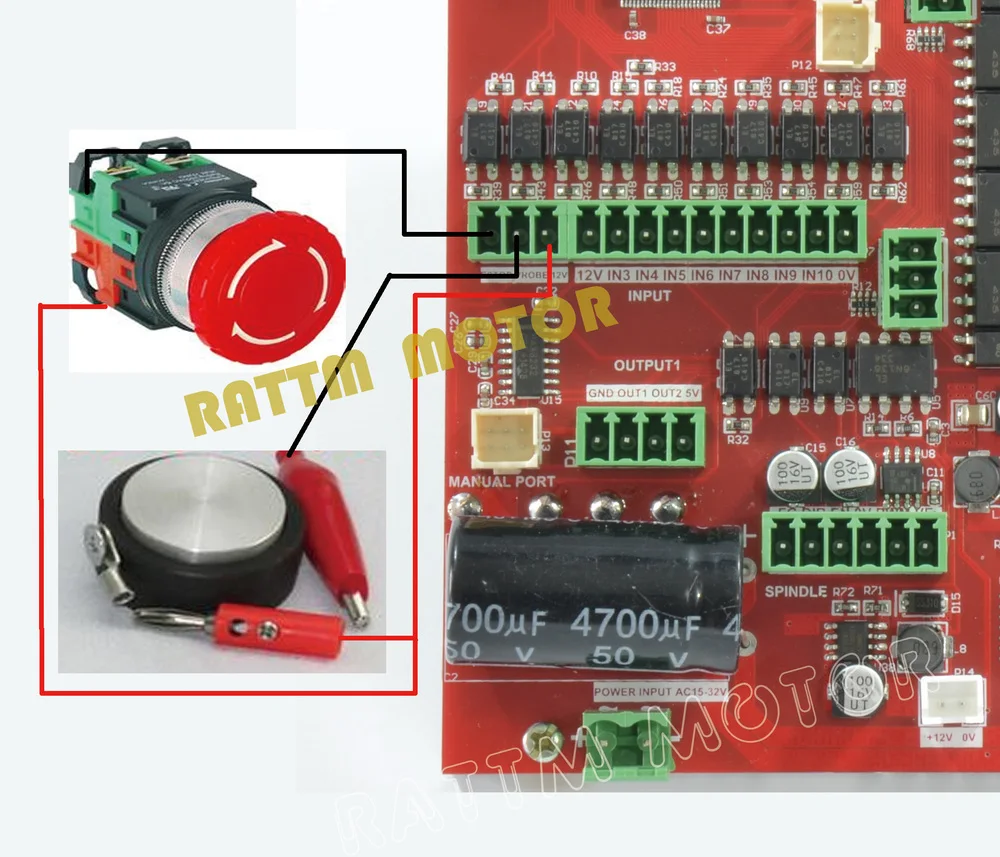

2)        11 IO input, opto-isolated, It Can be configured to limit the emergency stop and other functions, all of them are 15D-3.5 port;

3)        6 IO input with no opto-isolated but with iso-IC. This port is set to 15D-3.5mm and PHB2.0-2*3port;

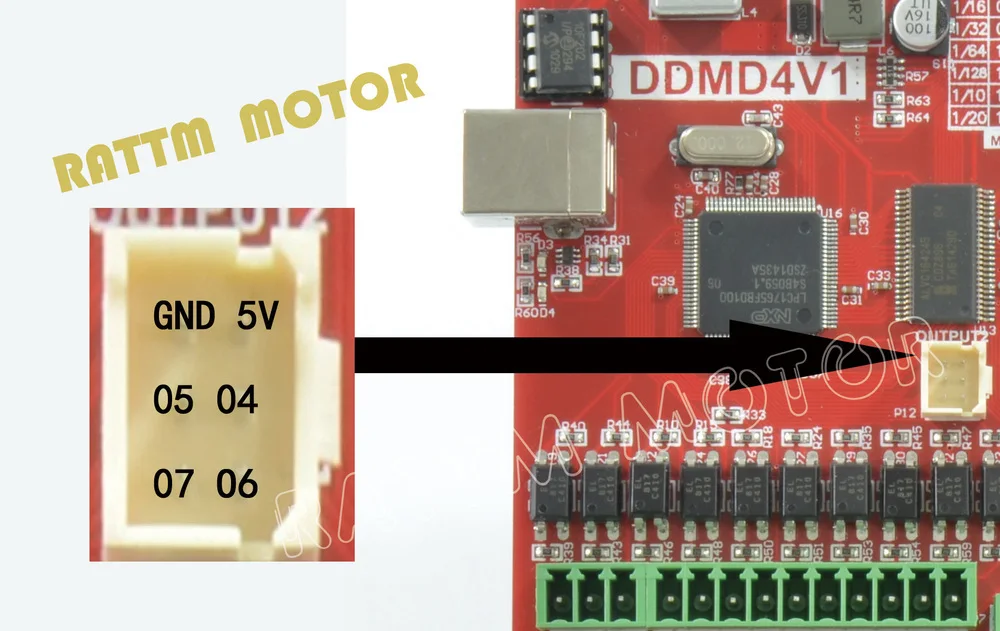

4)        2 IO output with opto-isolated for spindle can be configured to EN and DIR;

5)        up to 5 axes stepper-motor control port. Each port has up to 200KHz plus output;

6)        COTEX-M3 of NXP-LPC is main control chip;

New feature:

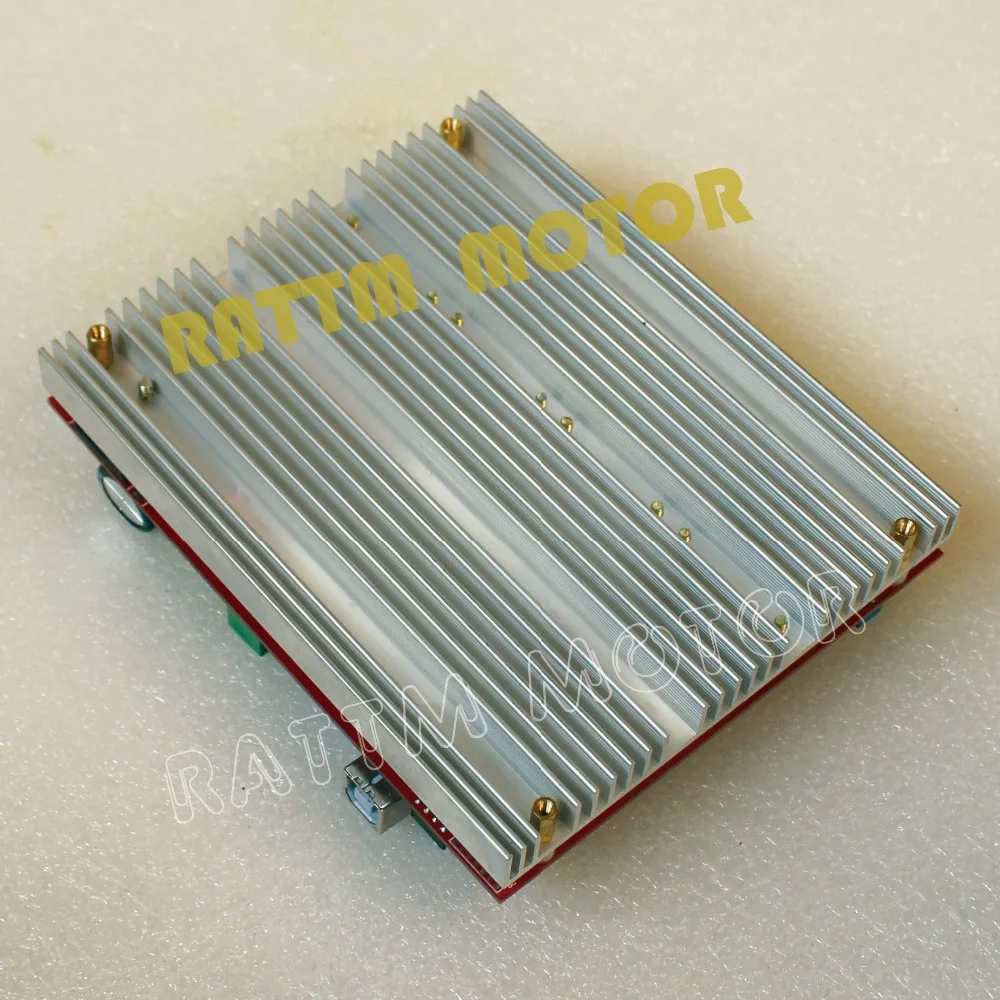

1)        New design Aluminum cooling make the system more stable;

2)        This system is equipped with RS2332 manual control box. You can use manual control box with this port;

3)        Equip control panel. You can give normal order from this panel on box;

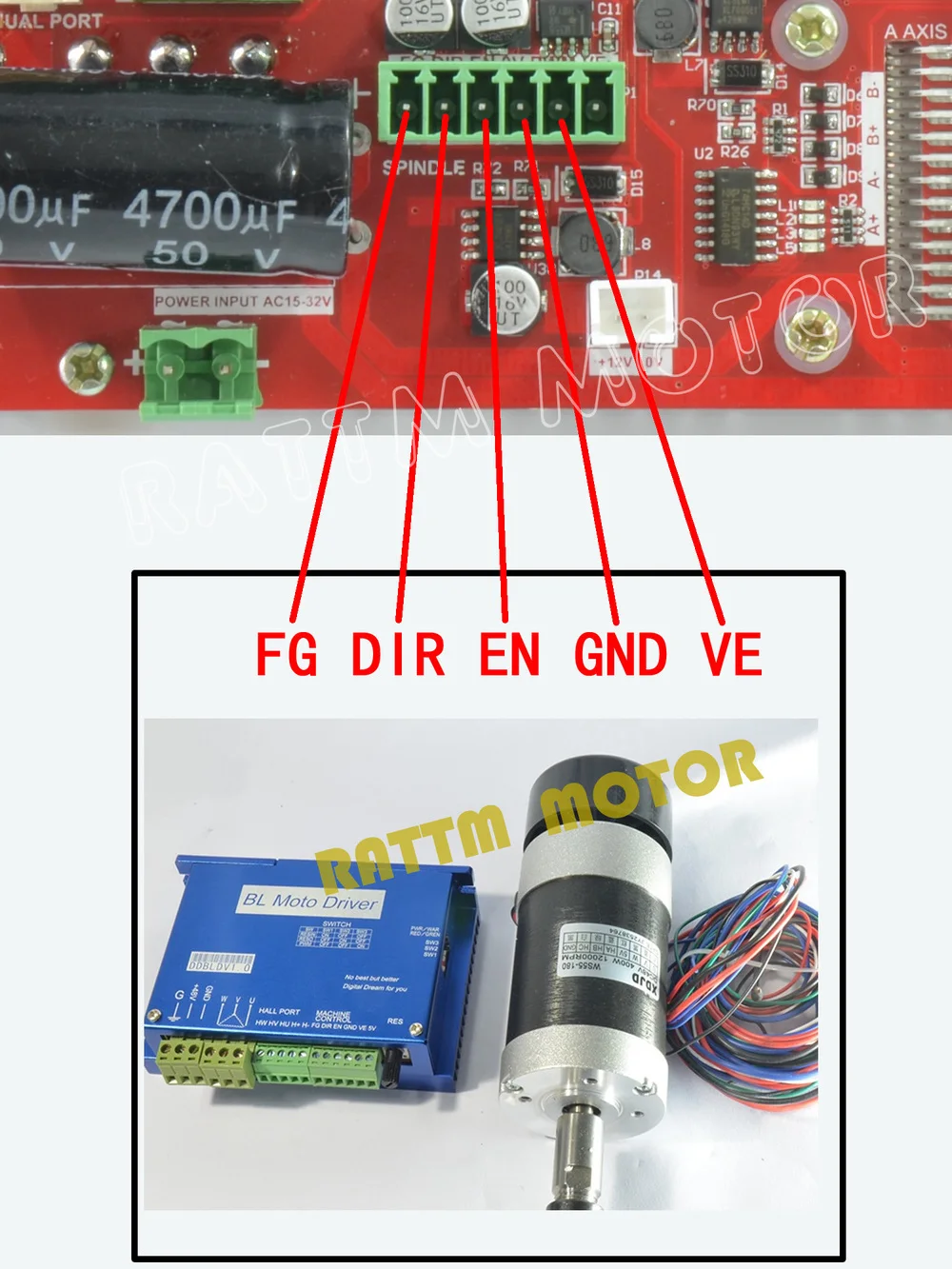

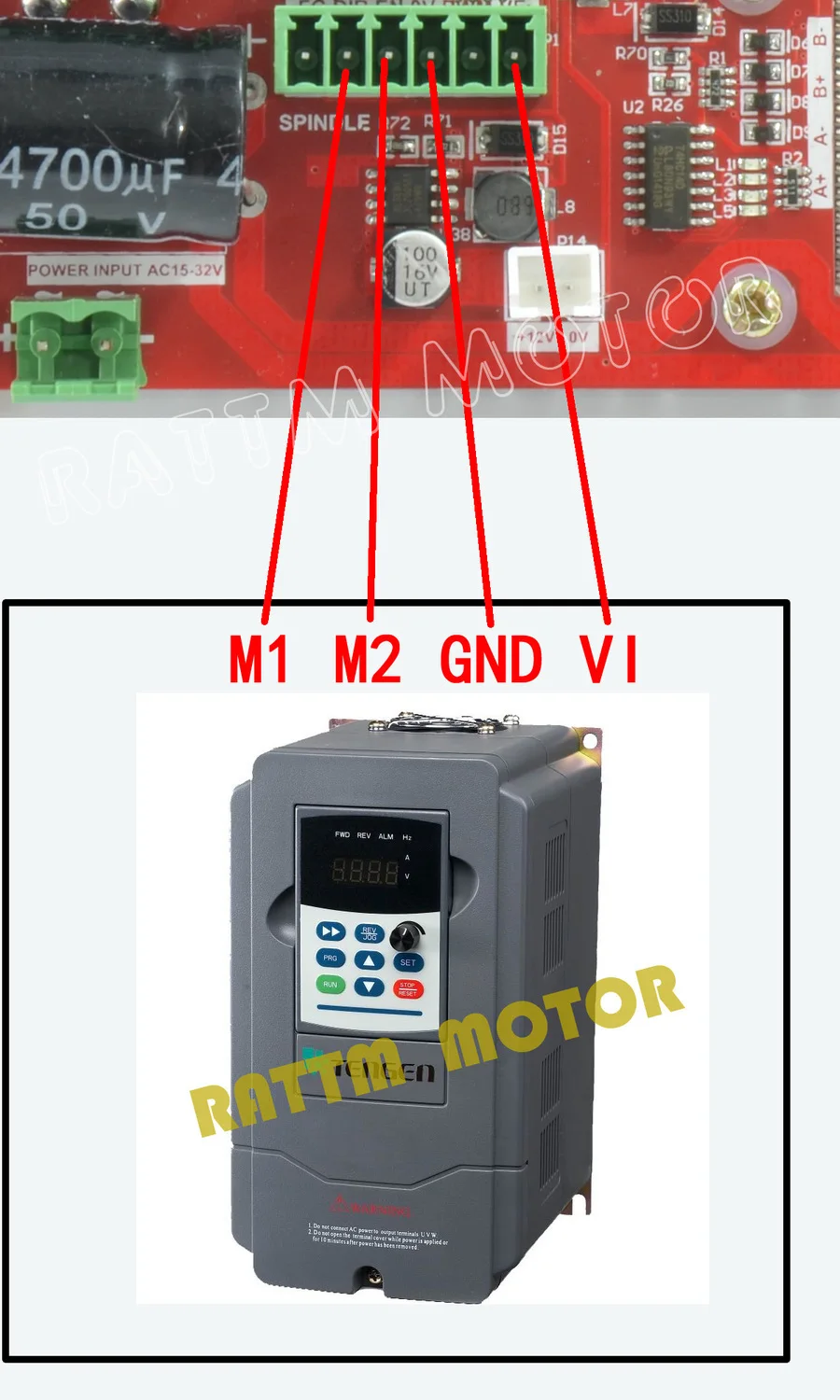

4)        Spindle control port has PWM Mod(0%-100% dutycycle with 12Vpp) and voltage Mod(0-10V).

5)        Spindle speed feed back port-INDEX.

6)        There is a power autostability system. When USB port overvoltage or undervoltage or within other EMI, this system can make power of system stable;

7)        There are High speed interface chips,which make stepper driver signal more stable;

8)        There is a USB protection chip,which can protect system within high voltage EMI.

4.Detailed functional introduction

1. System input voltage5V;

2. Operating voltage of input interface with no opto-isolated: 5V

3. Operating voltage of input interface with opto-isolated: 12V;

4. Operating voltage of output interface: 5V;

5. stepper motor control signal output voltage: 5V;

6. Spindle Signal: 10V.
