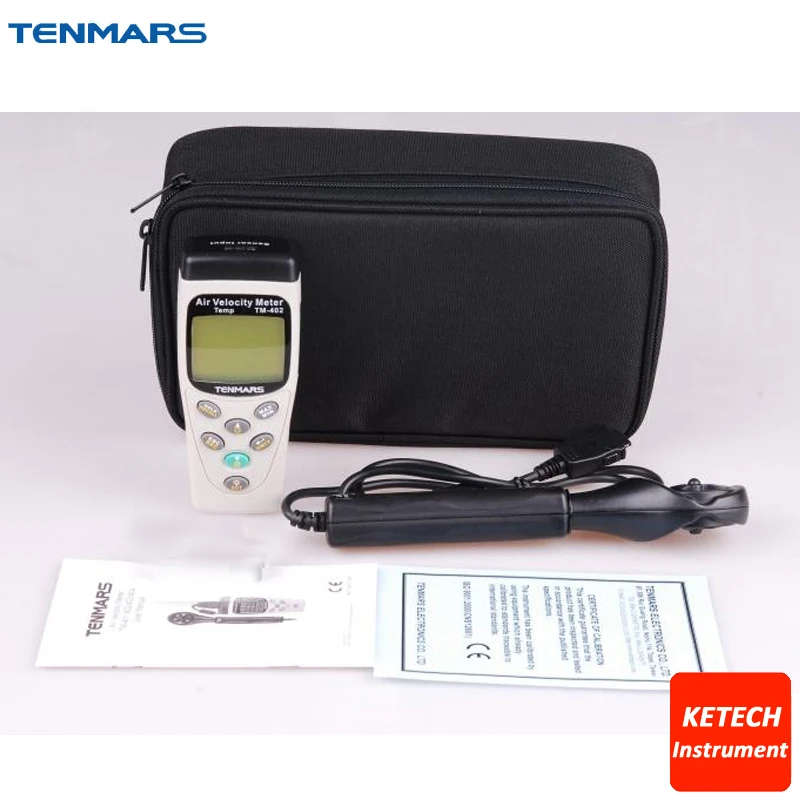

TM-402 Measures Air Speed, Temperature and Humidity Meter Tester

1. 30mm 6 plastics blade
2. Light air response 0.4m/s
3. Air flow calculate function.
4. Max/Min/Avg and data hold.
5. Memory capacity: 99 records.
6. Memory recall function
7. Backlight function.
8. Absolute Pressure Sensor
9. Humidity Sensor

Application:

TM-40X series measures air speed, temperature and humidity. It is ideal for spot measurements

at air outlets on account of its 30mm vane. In addition to air speed and temperature, also measures air moisture and absolute pressure. In this way, air conditions can be reliably checked.

Four models:

MODEL#

Velocity

99 Record

Flow

Temperature

Humidity

Pressure

TM-401

V

V

V

TM-402

V

V

V

V

TM-403

V

V

V

V

V

TM-404

V

V

V

V

V

V

Specification:

Velocity (Air Speed):

Unit

Range

Resolution

Accuracy

m/s

0.4~25

0.1

2%+0.2

Km/hr(kph)

1.5~90

0.1

2%+0.8

mph

0.9~55

0.1

2%+0.4

Knots(kts)

0.8~48

0.1

2%+0.4

ft/min(fpm)

79~4921

1

2%+40

Beaufort

1~10

1

--

Air Flow Calculation:

Unit

Range

Resolution

Accuracy

CMM

0~9999

1

--

CFM

0~9999

1

--

Temperature:

Unit

Range

Resolution

Accuracy

C

-20~60

0.1

1C

F

-4~140

0.1

1.8F

Humidity:

Unit

Range

Resolution

Accuracy

%RH

20~80

0.1

3.5%RH

%RH

80

0.1

5%RH

Absolute Pressure:

Unit

Range

Resolution

Accuracy

hPa

350~1100

0.1

2hPa

mmHg

263~825

0.1

1.5mmHg

inHg

10.3~32

0.1

0.1
