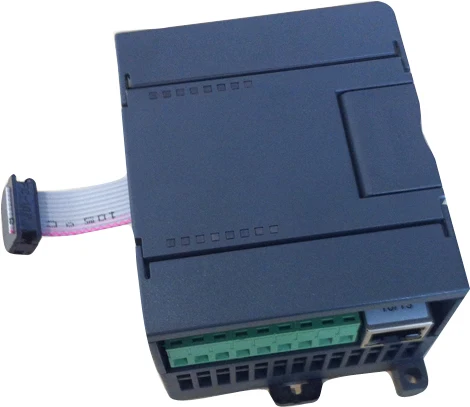

ETH-iBUS Ethernet converter

Overview:

ETH-iBUS can be directly connected via Ethernet cable WINCC ( ie without PC ACCESS or OPC mode ) . It enables you to use WinCC integrated drive [TCP/IP (auto)] to connect S7-200. In engineering applications of complex simple , convenient and practical. No need to use of OPC [ ie PC ACCESS]

Instability ! WinCC in the I, Q, M, DB1 ( remember the DB1) and s7-200 the I, Q, M, V one -one correspondence , the use of very simple , fill out the IP address can be established

That use . Meanwhile S7-200 MicroWin 4.0 programming software can also work at the same time , by ETH-iBUS s7-200 upload and download programs for online debugging and monitoring functions

Quite powerful, Siemens can not do it ! Additionally, Prodave 6.0 is unable to connect with S7-200, but by ETH-iBUS converter , go S7-300 TCP protocol

Is entirely feasible ! This is like the client program ( particularly in the data acquisition program ) provides the best means to solve the problem !

Advantages:

1 ,You do not need to do any work in the PLC and PC (especially in the programming does not require microwin Ethernet Wizard , Siemens CP243-1 relatively more convenient )

2 , do not need to connect wincc OPC, can be connected directly to enhance communication stability.

3 , you can use Prodave 6.0 and VB to develop their own S7-200 with host software.

Note: If you do not have direct connection or use wincc Prodave develop their own S-200 PC software, you can choose our CP243-iBUS, because its price will be relatively cheaper.

ETH-iBUS:

      First, the hardware connections:

1 ) linear way : that a PLC (s7-200 and a stage crew ( computer ) , is directly connected with RJ45 network cable.

2 ) Star way : that a PLC (s7-200) and two PC ( computer ) or multiple PLC (S7-200) and a stage crew ( computer ) or multiple PLC (s7-

200 ) and two PC ( computer ) , in the middle need to add an Ethernet switch with RJ45 network cable to connect the switch with the device .

The most common connection method is linear .

Use a good network cable communication distance up to 100 meters , so we should add a pair of long-distance fiber-optic transceivers and fiber optic cable , the distance of up to 4 km , you can add a post in the middle within 200 meters of

Replacement, play a role in the relay .

3 ) external power supply wiring diagram

               ETH-iBUS indicators :

On only one row of lights ( right) , when the bus to work , it lights up. ( Note : PLC is not powered on , or ETH-iBUS module is not connected with the bus S7-200 PLC

Next, the light does not shine ) .

Bottom row has four indicators:

( 1 ) Lower left : flashing representatives Ethernet (TCP) data sent to the PLC

( 2 ) lower row from left : Hang on, on behalf of the module board is working properly ; flashing on behalf of the module board reset or fault condition

( 3 ) lower row from left : Hang on, on behalf of the module to communicate with the PLC to normal ; flashing on behalf of the internal bus communication module and the PLC is not reset and fault status !

( 4 ) bottom row , fourth from left : flashing representatives PLC data sent to the Ethernet (TCP). When long time without data exchange , the lights around once every 10 seconds transform state

( From light to dark or from dark into light )

       Two , ETH-iBUS converter settings:

Parameter settings ETH-iBUS is through IE browser settings , this time with the ETH-iBUS converter connected to the power at the same time to PLC and computer with a network cable ETHiBUS

Connected,ETH-ibus good to external 24V power supply, Set the computer's IP address (192.168.1.100) mask (255.255.255.0), gateway (192.168.1.1), last in total

Computer's IE browser , type 192.168.1.222 can enter the ETH-iBUS main menu
