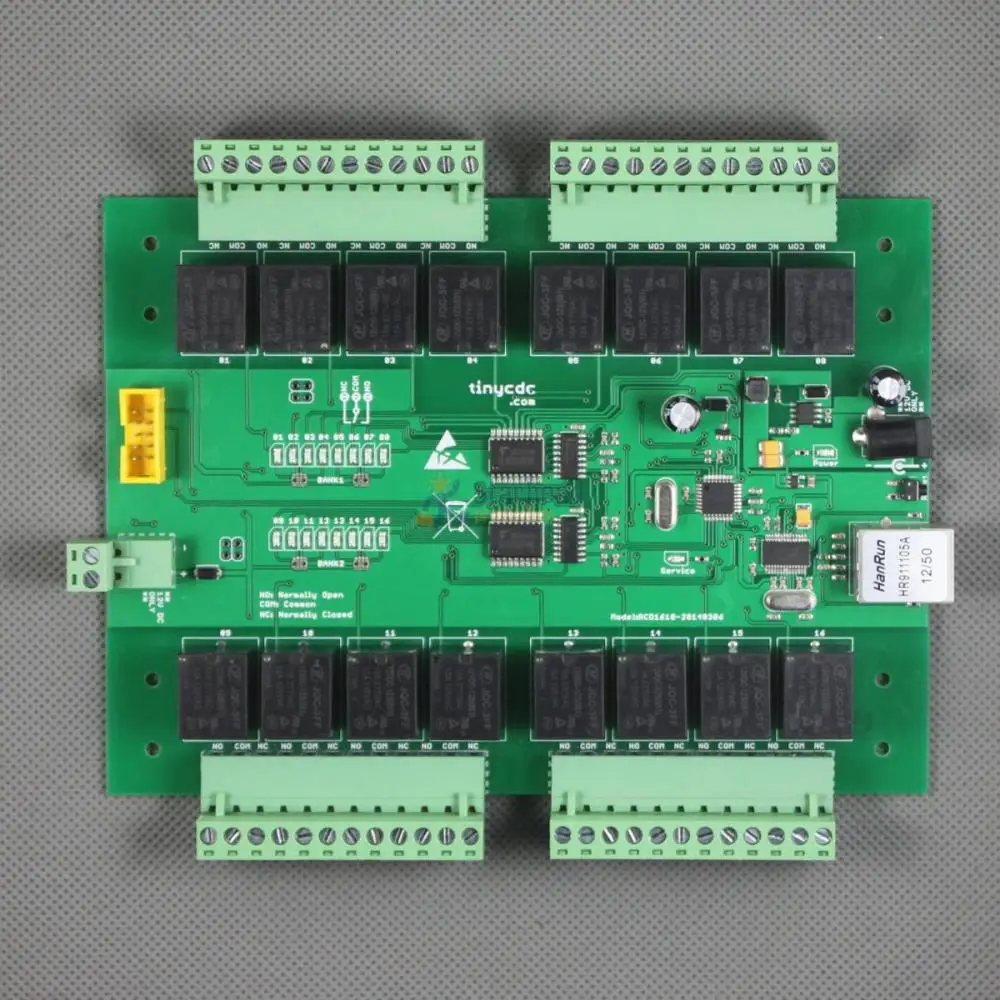

16-канальный Ethernet сетевой релейный контроллер 10A выходы веб-разъем HTTP UDP TCP WEBAPI V2.0

16-канальный Ethernet сетевой релейный контроллер 10A выходы веб-разъем HTTP UDP TCP WEBAPI V2.0

We provide English manual and software for the product.

WEBAPI-V2.0: no longer need to toss hexadecimal characters , you can use the intuitive, straightforward way to control the URL . Generation of WEBAPI, provides basic relay control functions, but also provides configuration capabilities.
Power off memory : Provides configurable power and memory function , when the function is turned on , the relay suddenly power down automatically when the power failure recovery time will be at the next power-up.This parameter is off by default .
Inching Switch Mode: provides delay interval 0.5-20 jog function ( similar to the computer start button, automatically released by the delay time after the press ) .
Alternate port : for the case when part of the router port mapping port 80 may be occupied by other devices or port 80 is blocked , providing a modifiable alternate port .

If you need to access from WAN network, Please set Port Mapping on the router.

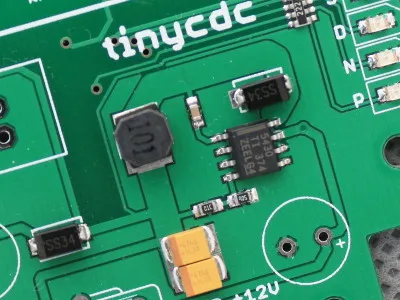

1 Power :. 12V 2A

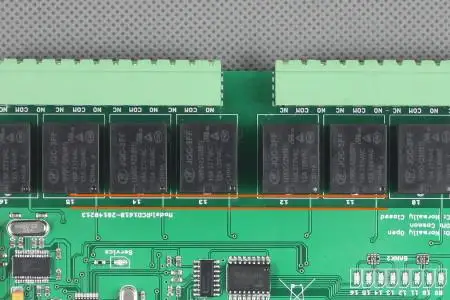

2 Relay Specifications :. 10A 277VAC/28VDC

Package include:

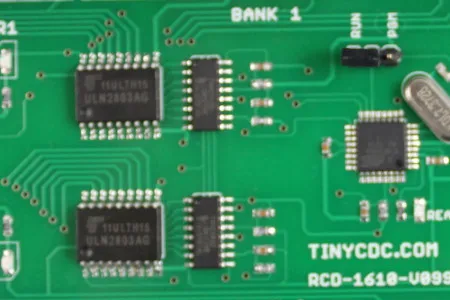

Controller board *1

terminal blocks

We Provides the following resources for the controller (English)

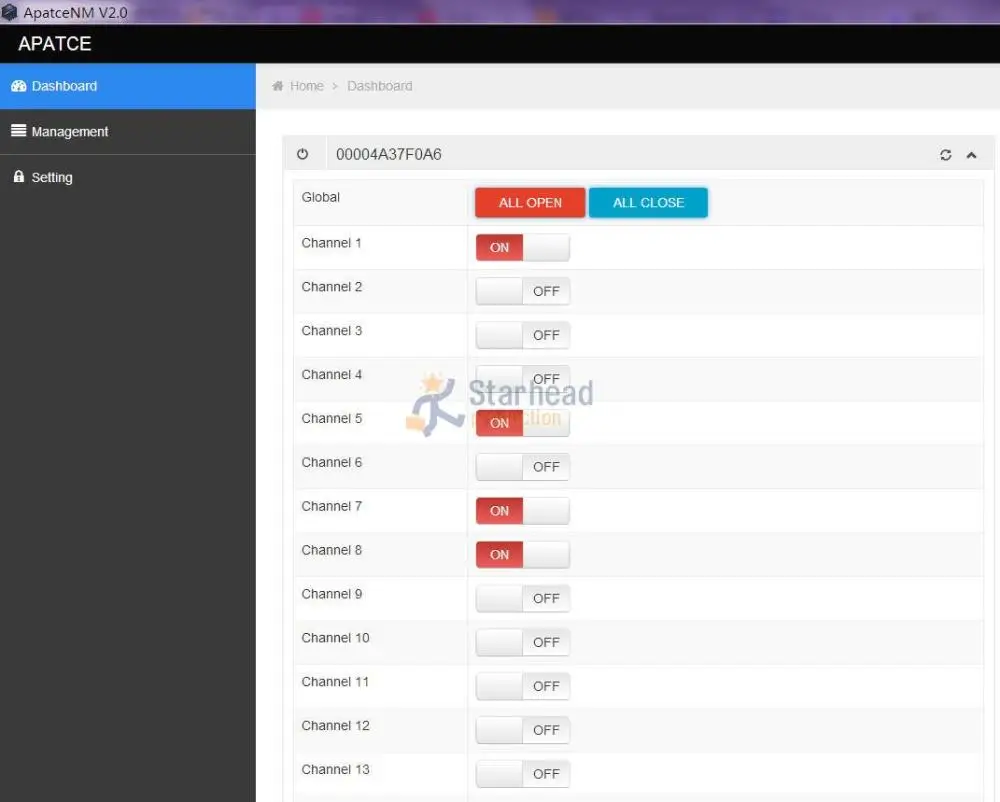

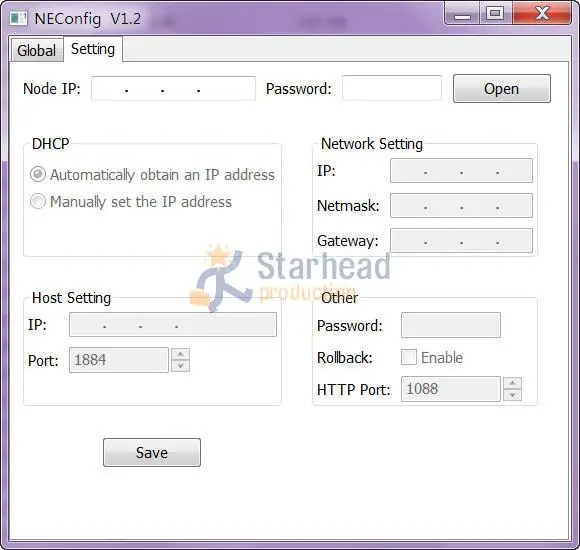

Configuration software:

Android APP:

Also the free example and codes for your 2nd developing

RCD Series supports call URL with GET method to control the device, it returns JSON data.

http://192.168.1.25/pwr/relays?ac=123456&value=0f0f

set 1~4 and 9-12 relay to close

return::{"v":[15, 15]}

Path: /gpio/ts/{n}, n is used to indicate the relay number
Parameter: delay={#}
Parameter description: the delay time between press and release, range of 5~200(0.5sec~20sec)
Example: http://192.168.1.25/gpio/ts/2?ac=123456&delay=100
Example description: relay 2 closed 10 seconds and then release
